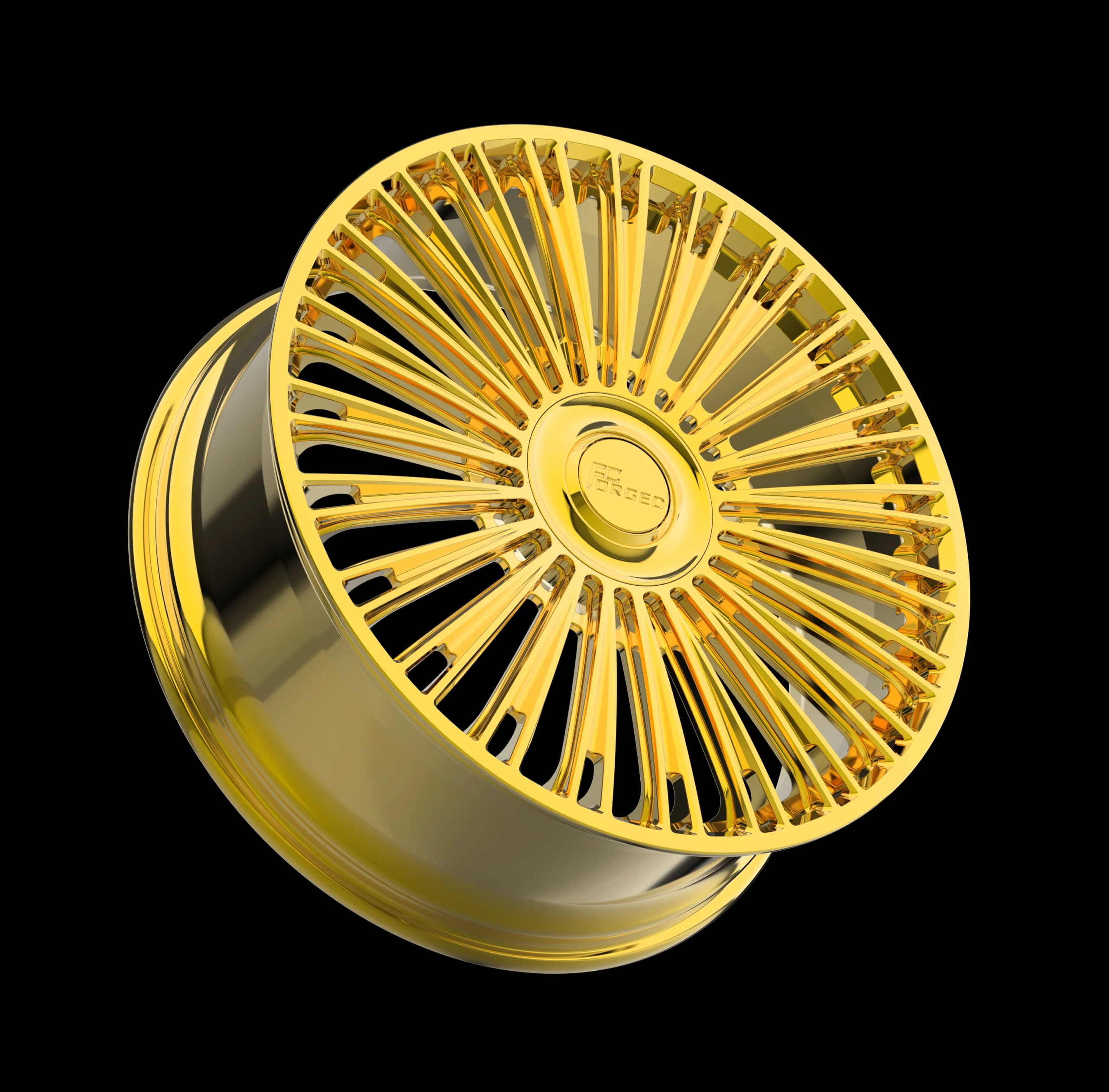

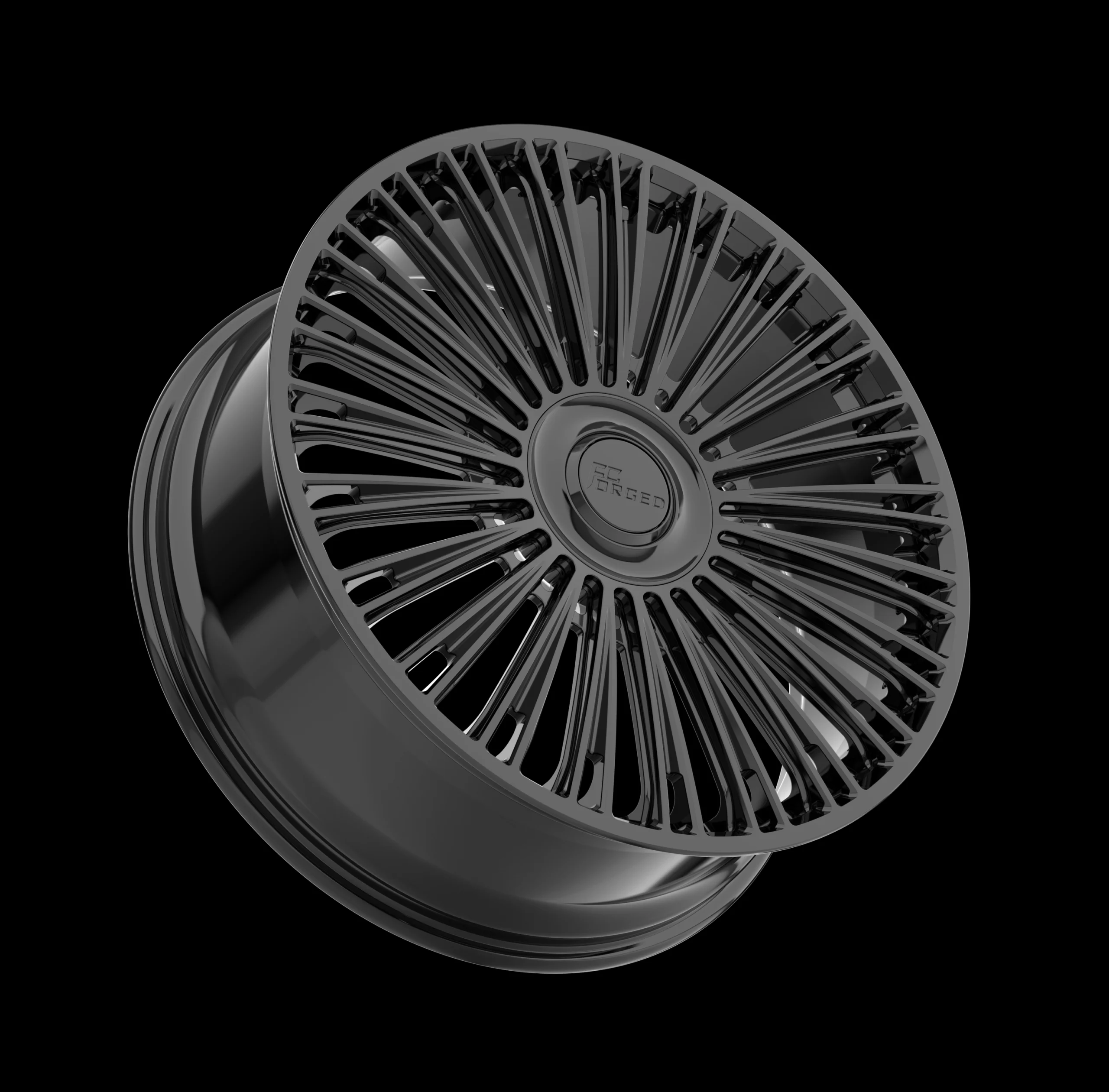

M02 FINE RADIAL-SPOKE FORGED WHEELS – MONOBLOCK DESIGN
Fine radial-spoke forged wheels with closely spaced spokes and one-piece 6061-T6 aluminum construction form design M02. Use SKU FC-M02 when discussing your vehicle, dimensions and finish preferences for a custom quote.
01 / DESIGN

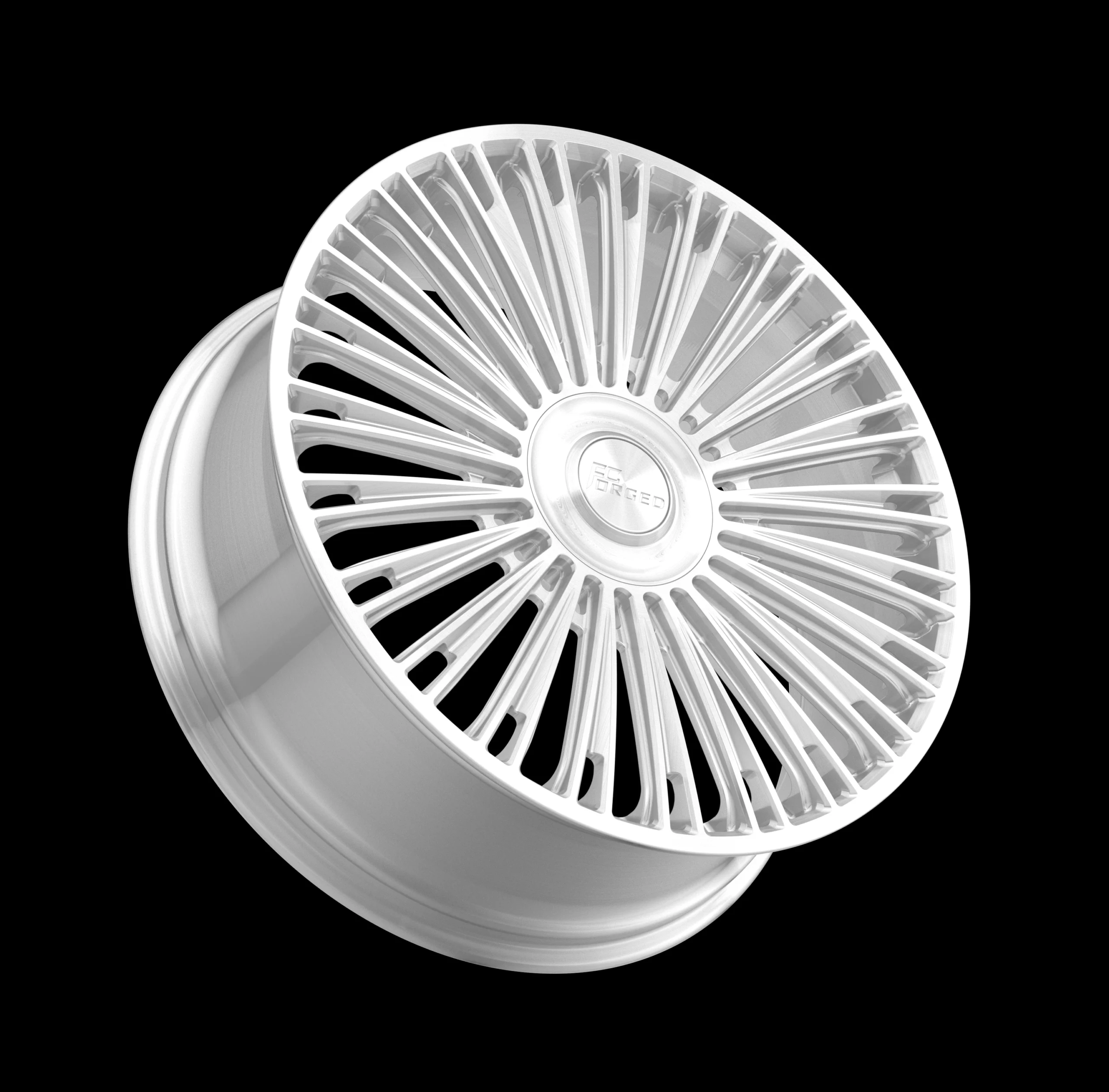

FINE RADIAL SPOKES
Fine spokes radiate from the M02 center toward the rim. Use a close view of this radial pattern in your design brief.
02 / CONSTRUCTION

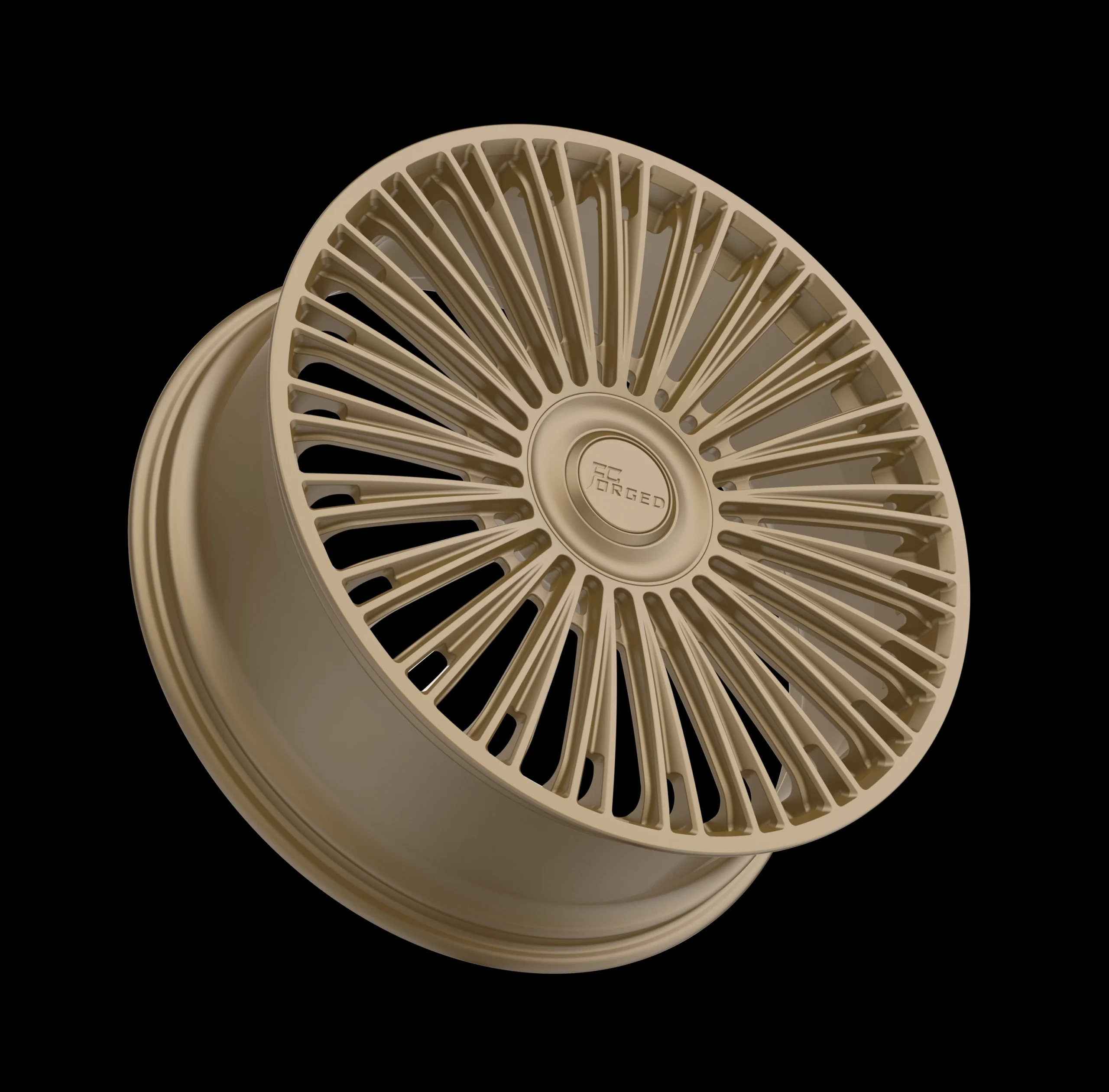

MONOBLOCK RADIAL DESIGN
6061-T6 forged aluminum and monoblock construction form the M02 radial-spoke wheel.
03 / PERSONALIZATION

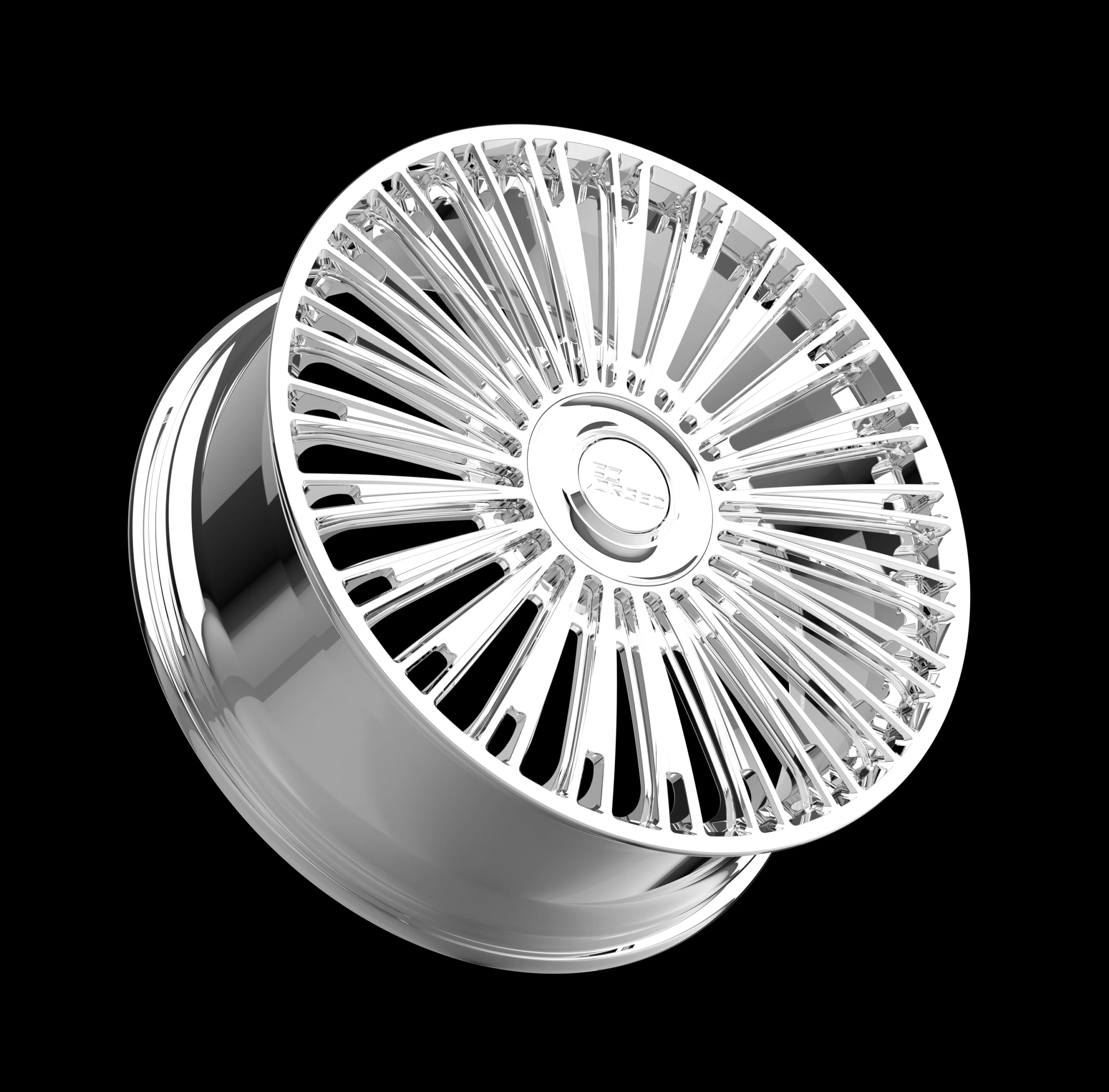

RADIAL-SPOKE DETAILS
Mark the finish and center-logo treatment you want on an M02 radial-spoke reference.
FROM YOUR BRIEF TO A REVIEWABLE DESIGN

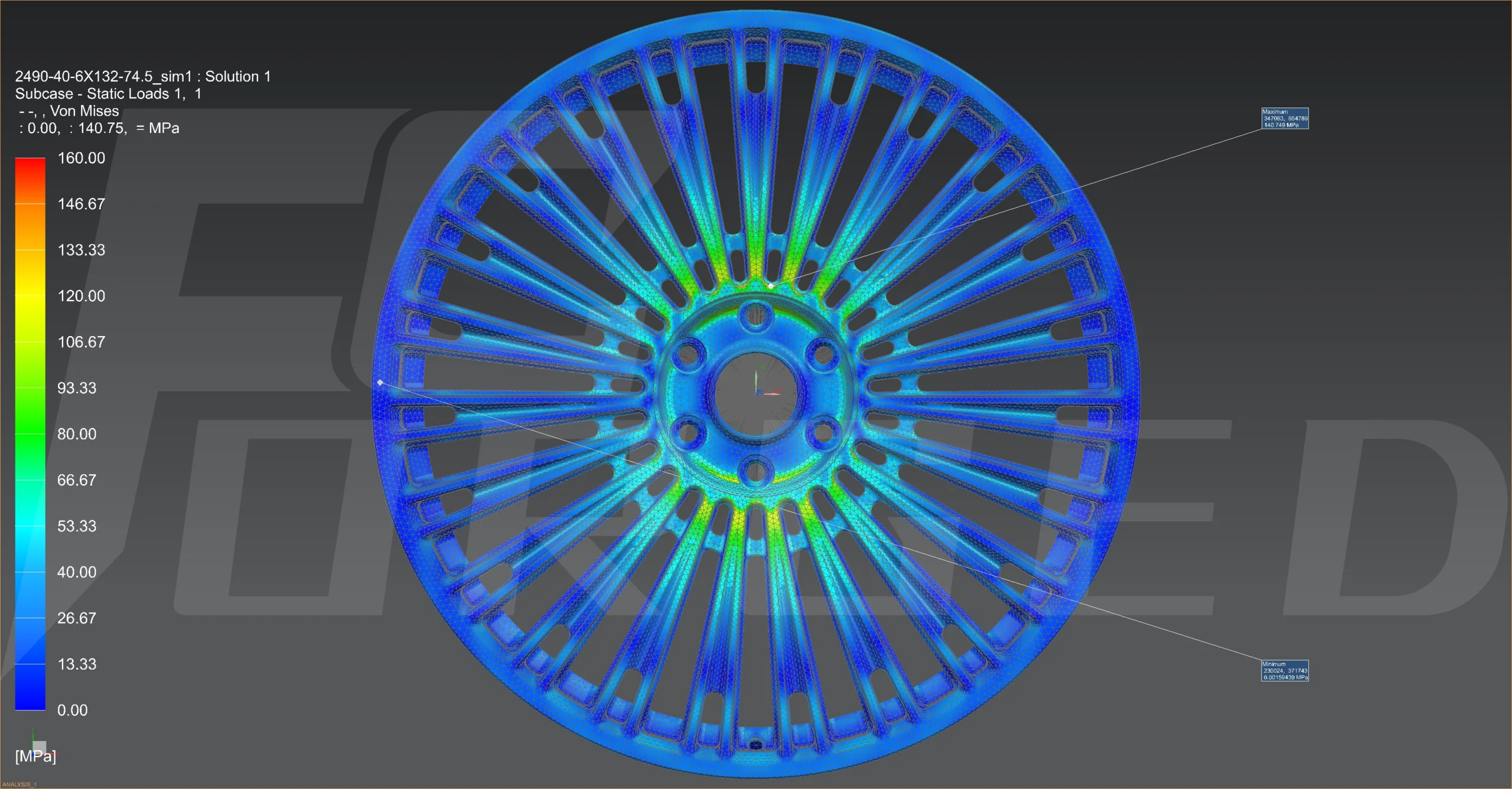

DESIGN REVIEW & FEA
FcForged can carry out finite element analysis (FEA) simulations for wheel projects. For M02 forged monoblock wheels, discuss the proposed wheel specification and intended use so the simulation scope can be agreed for the project.
01 / DEFINE THE PROJECT
Share the vehicle, wheel dimensions, intended use and available load information. Clearly identify any front and rear differences. These details help define what needs to be reviewed.
02 / REVIEW BEFORE PRODUCTION
Review the proposed drawings and renderings before approving production. When reviewing FEA results, check which design revision, material assumptions and loading conditions they represent. A simulation image describes a particular analysis; it is not a blanket performance rating or a substitute for any required physical testing.
CUSTOMIZE YOUR M02
M02 SPECIFICATIONS & OPTIONS
Use these dimensions with the M02 radial-spoke reference. Confirm the final combination before ordering.
DIAMETERS
Diameter options: 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26 in. The options exclude 25 in.
FITMENT
ET: -44 to +122. Bolt-hole options: 4, 5, 6 or 8 holes. Supply the exact PCD separately; hole count does not define the bolt pattern.
CUSTOM DETAILS
Center bore, finish and center logo: custom.
A CLEAR BRIEF. A BETTER START.
BUILD YOUR M02 BRIEF
Build the M02 brief around the fine radial-spoke appearance you want.
- 01
YOUR VEHICLE
Make, model, year and trim. Note any brake or suspension modifications.
- 02
WHEEL & TIRE
For M02, send the required diameter and width alongside a clear view of the fine radial-spoke design.
- 03
FITMENT DETAILS
PCD, center bore and offset, if known. List front and rear separately.
- 04
BRAKE CLEARANCE
Brake details, measurements, drawings and photos that explain the installation.
- 05
YOUR LOOK
Mark your finish preferences on the fine radial spokes and center area.
- 06
YOUR ORDER
Quantity, delivery destination and target schedule. Businesses can add their sales market.
Separate measured dimensions from visual preferences in the M02 brief.
M02 QUESTIONS
What identifies the M02 design?

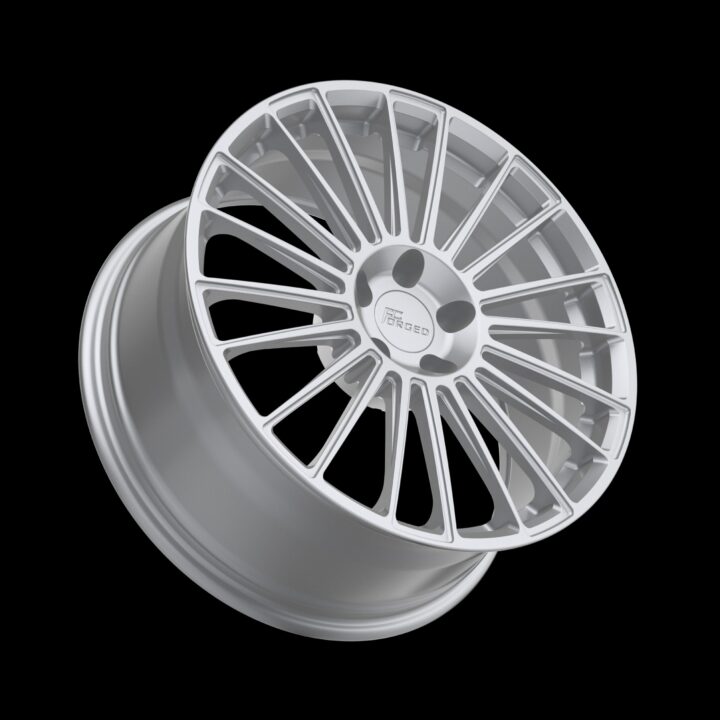

M02 has fine radial spokes extending from the center toward the rim. M01 provides a different multi-spoke appearance.
What ET range is available for M02?
The current M02 specification gives an ET range of -44 to +122.
Which bolt-hole options does M02 offer?
M02 offers 4-, 5-, 6- and 8-hole options. Supply the exact PCD separately; hole count alone does not give the bolt-circle diameter.
