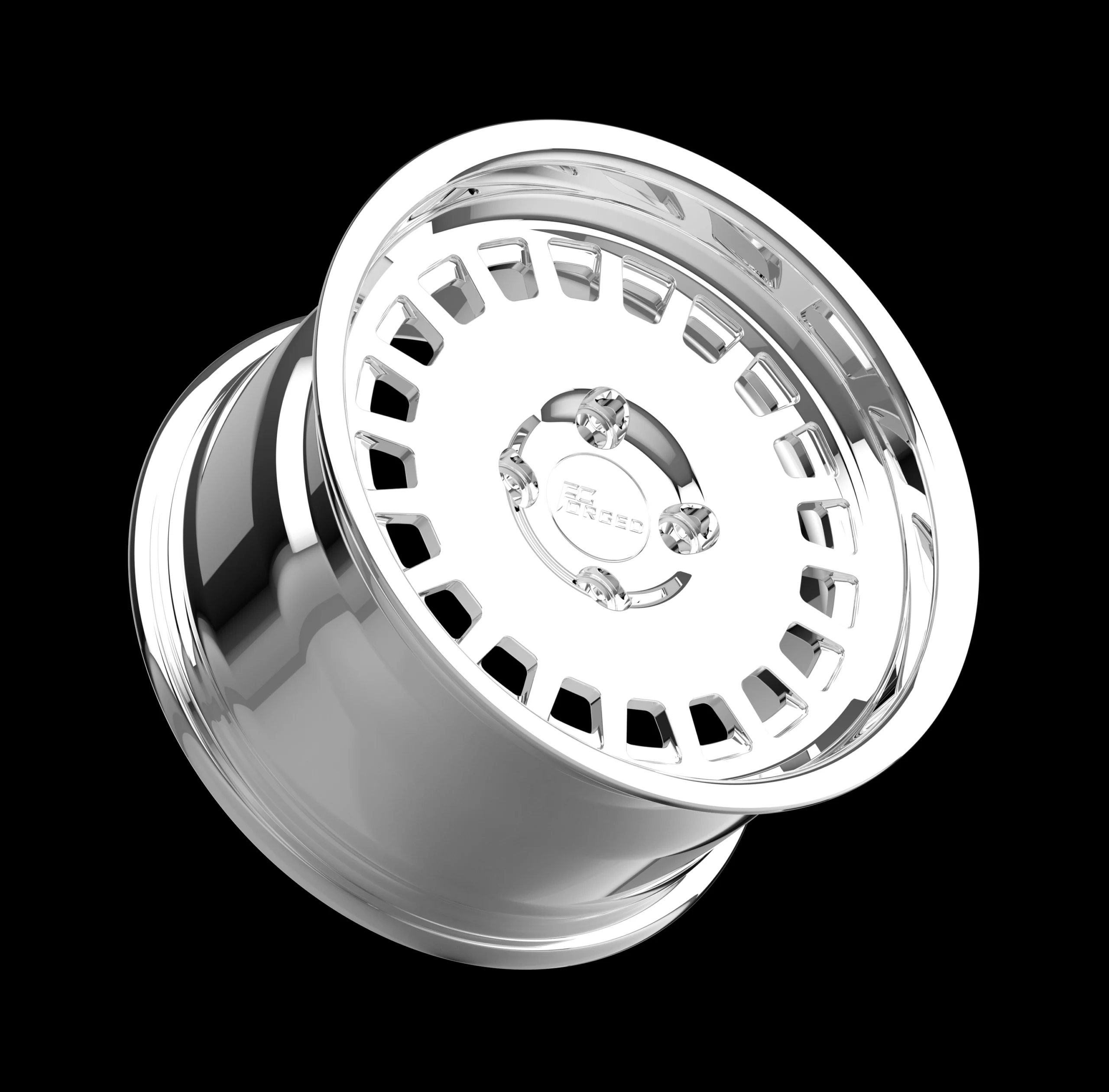

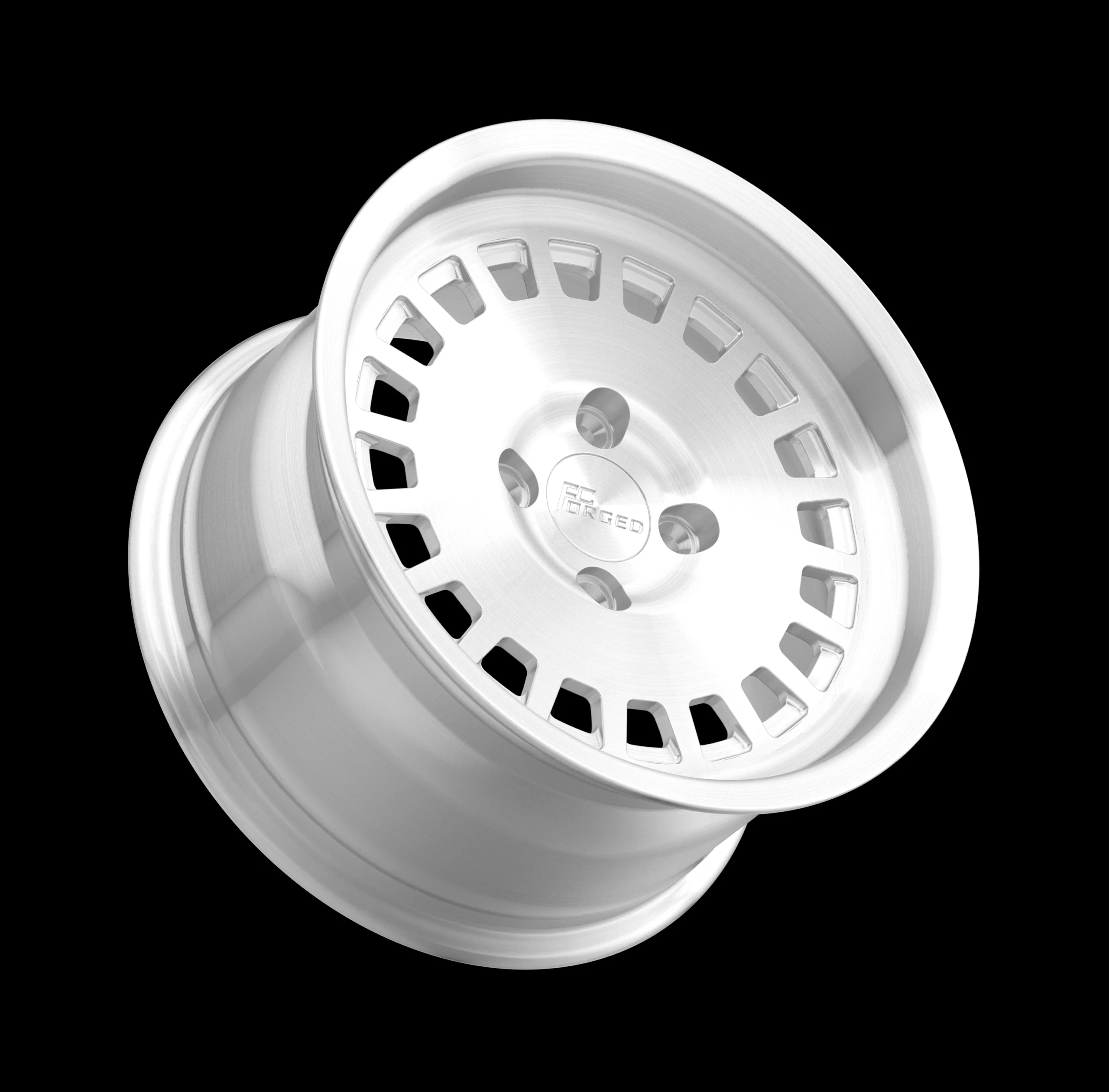

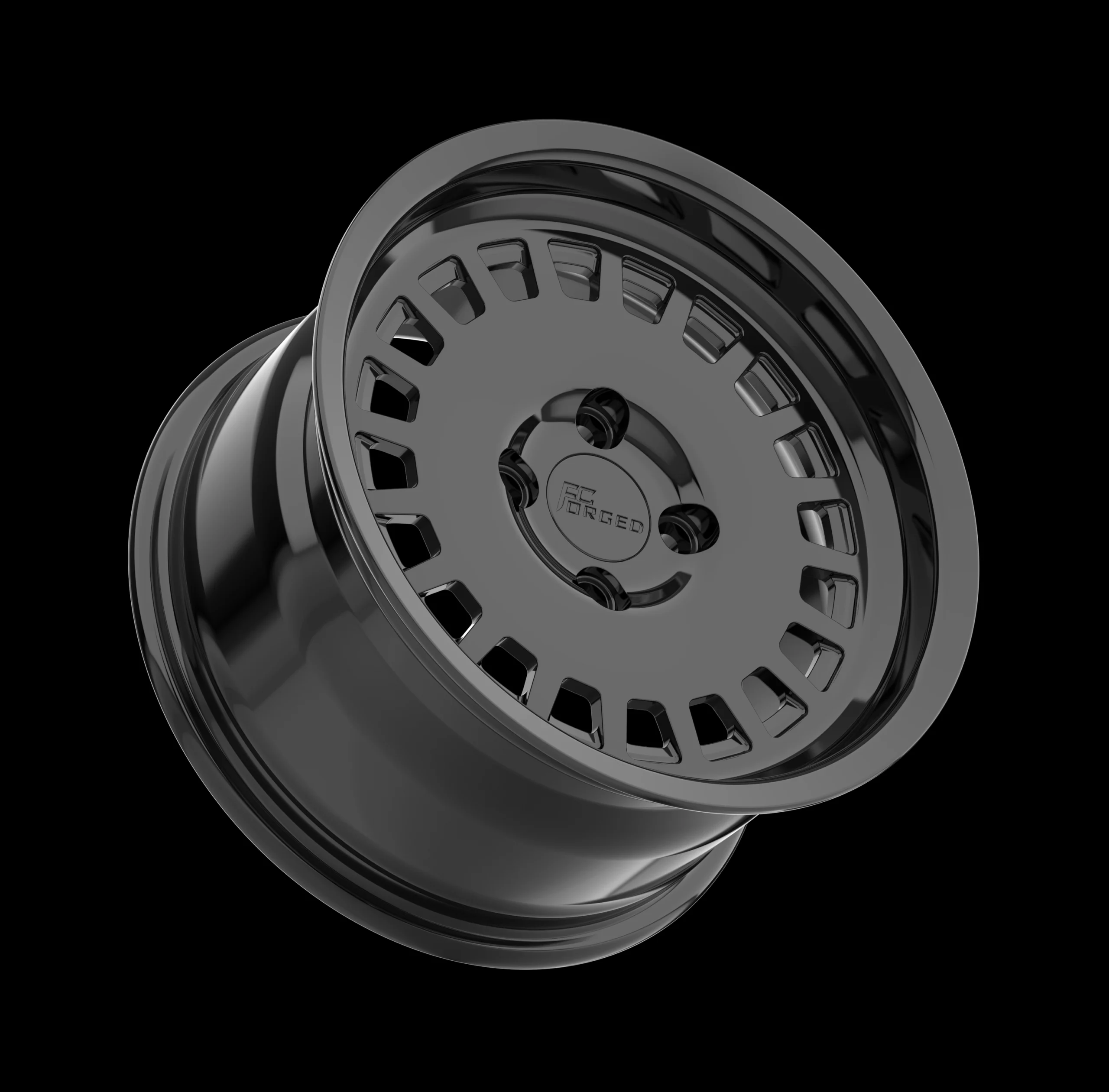

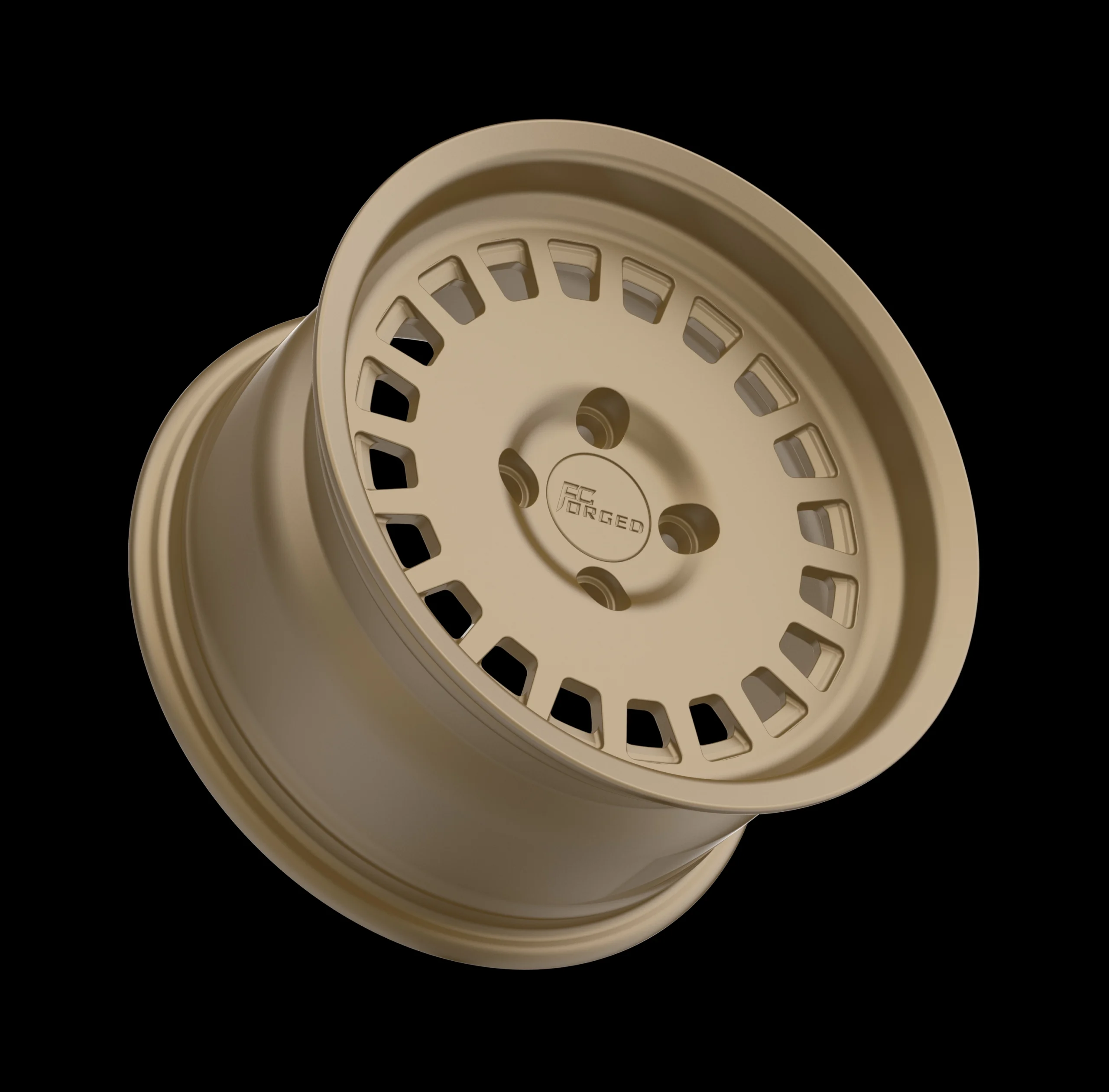

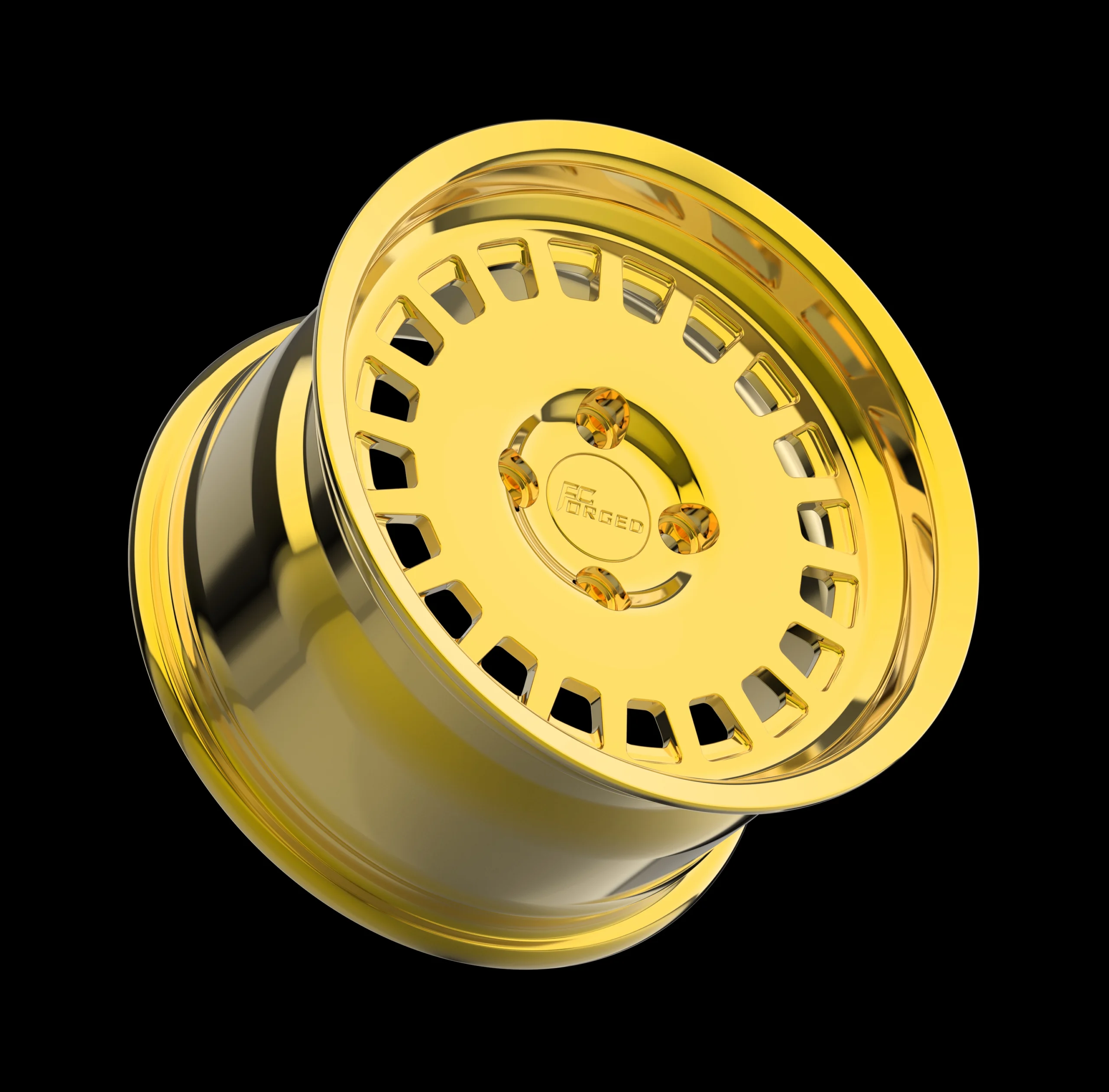

HT003 H-TYPE FORGED WHEELS – MONOBLOCK CONSTRUCTION
HT003 is an H-Type monoblock design in 6061-T6 forged aluminum. It offers custom center bore, finish and center logo.
01 / DESIGN
H-TYPE MODEL
The H-Type spoke appearance identifies HT003 in the collection. Use its design reference to describe the look you want.
02 / CONSTRUCTION
6061-T6 MONOBLOCK
6061-T6 forged aluminum is the material specified for this H-Type design.
03 / PERSONALIZATION
CUSTOM FINISH & LOGO
Describe the finish on the H-Type spokes and the center-logo artwork you want.
REVIEW THE SELECTED CONFIGURATION

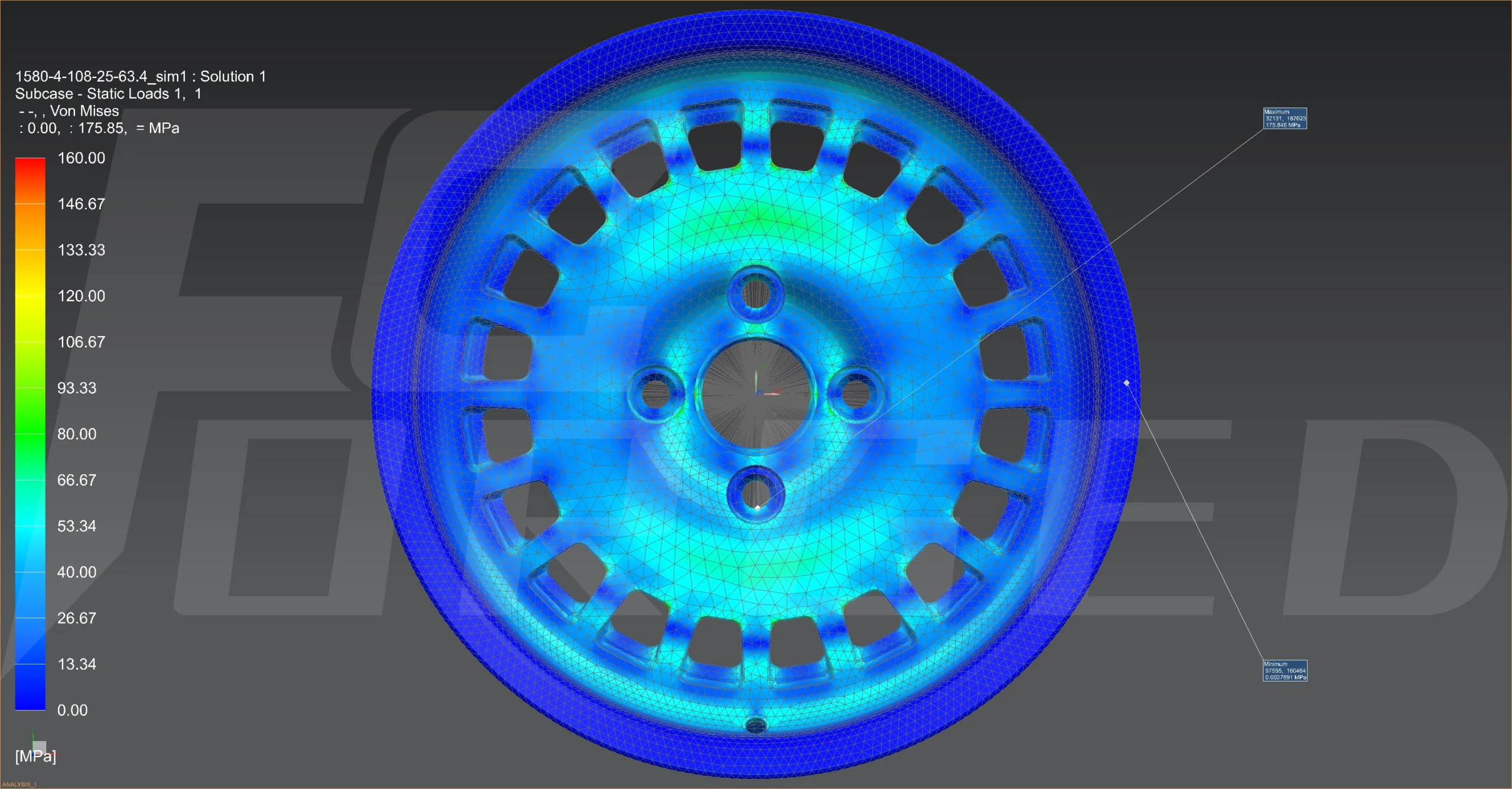

DESIGN REVIEW & FEA
The supplied FEA reference relates to its corresponding specification and analysis conditions. It does not establish vehicle compatibility or a load rating for every HT003 configuration. Identify the proposed wheel dimensions and intended use when discussing the reference.
01 / DEFINE THE PROJECT
Share the vehicle, selected diameter, required width, exact bolt pattern, center bore and offset. Identify front and rear differences, brake requirements and any available load information.
02 / REVIEW BEFORE PRODUCTION
Review the HT003 dimensions and H-Type appearance together before production. The FEA reference remains specific to the design revision and analysis conditions it represents.
CUSTOMIZE YOUR HT003
HT003 SPECIFICATIONS & OPTIONS
HT003 options are shown below. Confirm the complete dimensions and availability as one specification before ordering.
DIAMETERS
Diameter options: 14, 15, 17, 18, 19, 20, 22, 24 and 26 in.
FITMENT
ET: -23 to +90. Bolt-hole options: 4, 5, 6 or 8 holes. Supply the exact PCD separately; hole count does not define the bolt pattern.
CUSTOM DETAILS
Center bore, finish and center logo: custom.
A CLEAR BRIEF. A BETTER START.
BUILD YOUR HT003 BRIEF
Start the HT003 brief with an H-Type appearance reference and your wheel dimensions.
- 01
YOUR VEHICLE
Make, model, year and trim. Note any brake or suspension modifications.
- 02
WHEEL & TIRE
Add your diameter and width to the HT003 H-Type design reference.
- 03
FITMENT DETAILS
Exact PCD, center bore and offset, if known. Hole count alone is insufficient. List front and rear separately.
- 04
BRAKE CLEARANCE
Brake details, measurements, drawings and photos that explain the installation.
- 05
YOUR LOOK
Show the desired H-Type spoke finish and center-logo artwork.
- 06
YOUR ORDER
Quantity, delivery destination and target schedule. Businesses can add their sales market.
Identify the source of the dimensions supplied for HT003.
HT003 QUESTIONS
What defines the HT003 appearance?
HT003 uses an H-Type spoke design with monoblock construction.
Do the listed hole counts specify the PCD?
No. The 4-, 5-, 6- and 8-hole options identify bolt-hole counts; the exact PCD is a separate dimension that you provide.
Which diameters are available for HT003?
HT003 offers 14, 15, 17, 18, 19, 20, 22, 24 and 26 in. The range does not include 16, 21, 23 or 25 in.
