FCFORGED / DESIGN & PROJECT OPTIONS
TW022 SPLIT-SPOKE FORGED WHEELS – 2-PIECE, 17 TO 34 INCH
TW022 split-spoke forged wheels combine a face of slim spokes arranged in pairs from the center area to the lip with 2-piece construction in 6061-T6 forged aluminum. Share your vehicle, preferred diameter and finish to start a custom wheel project.
01 / DESIGN

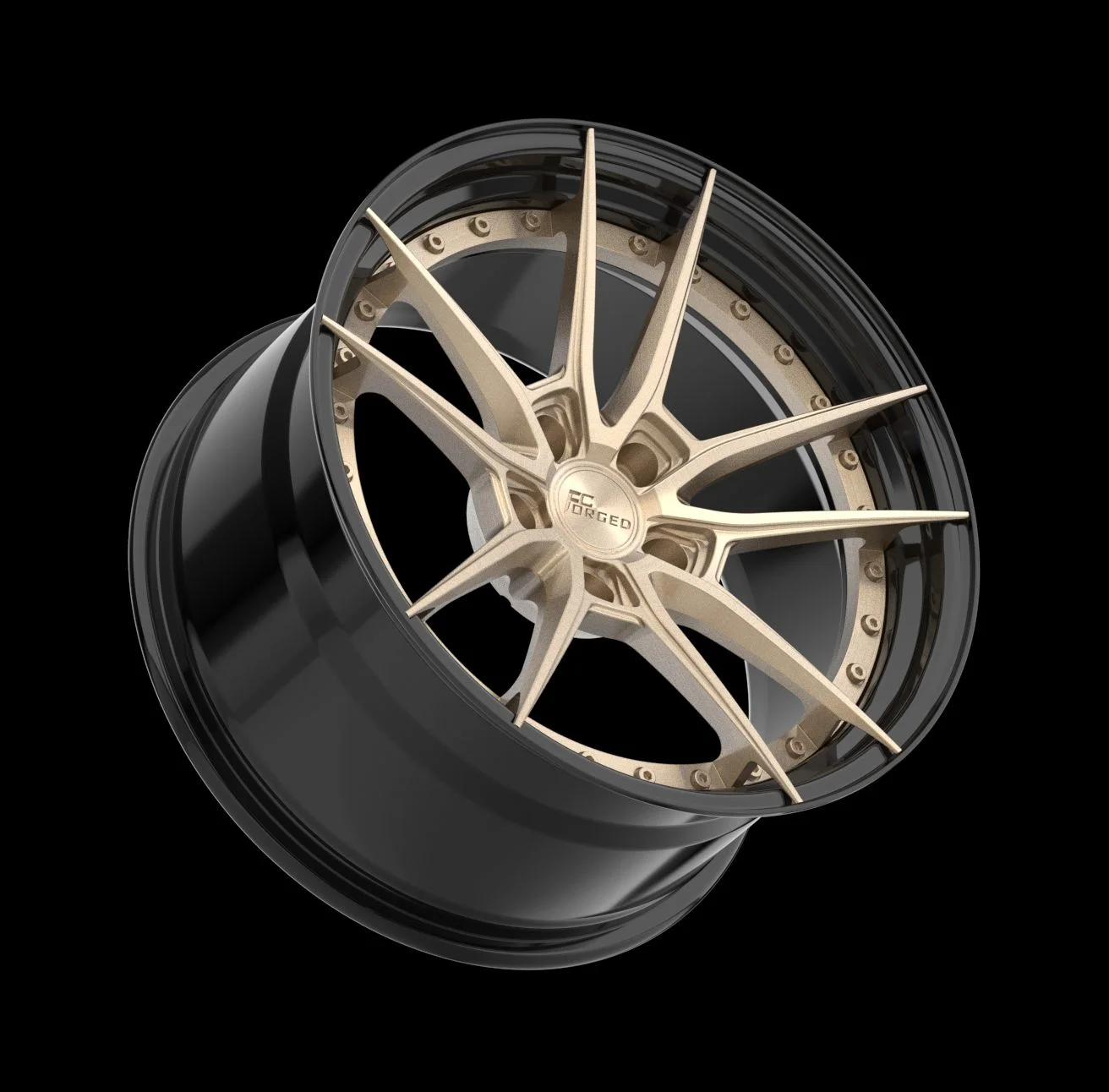

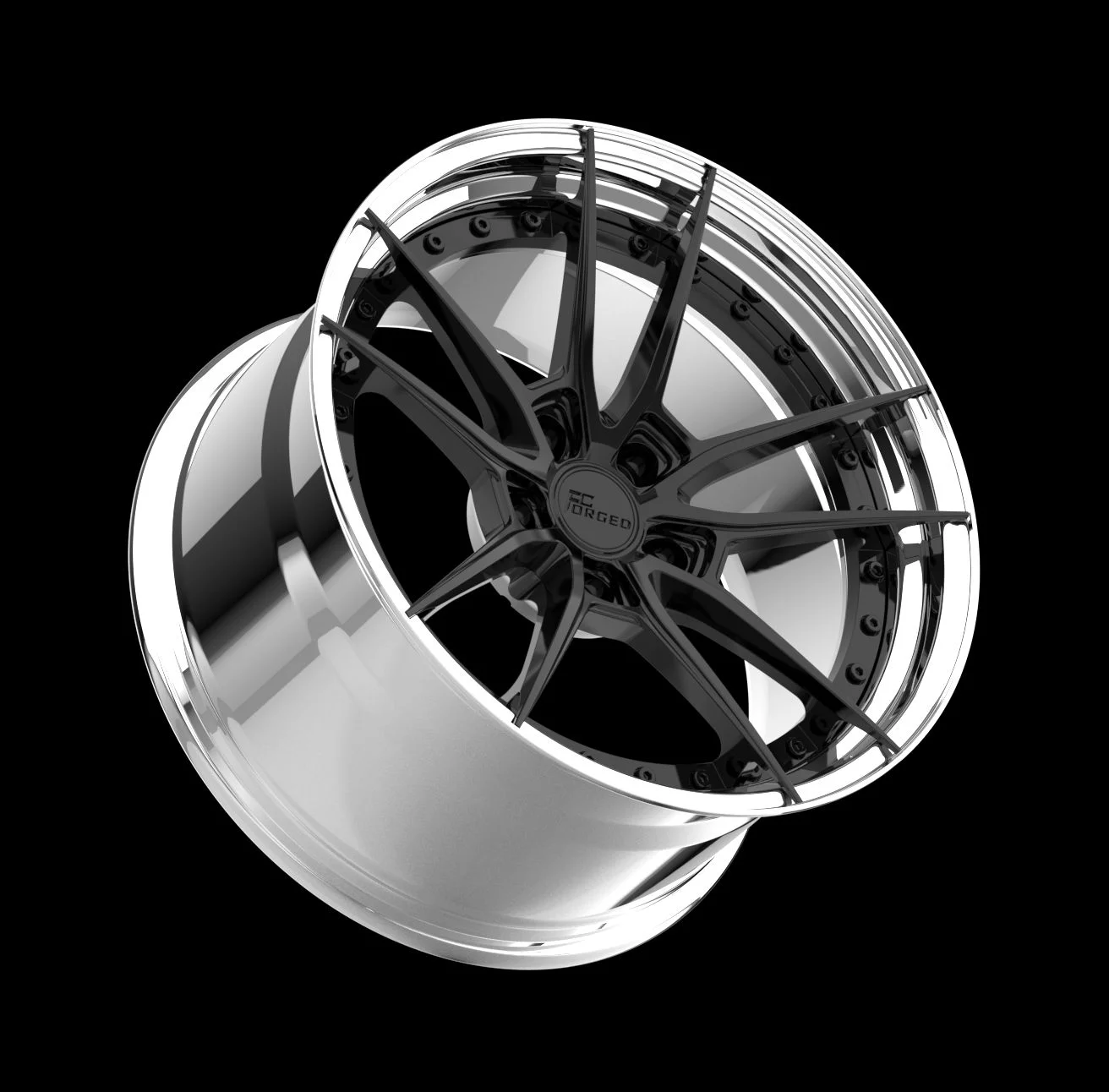

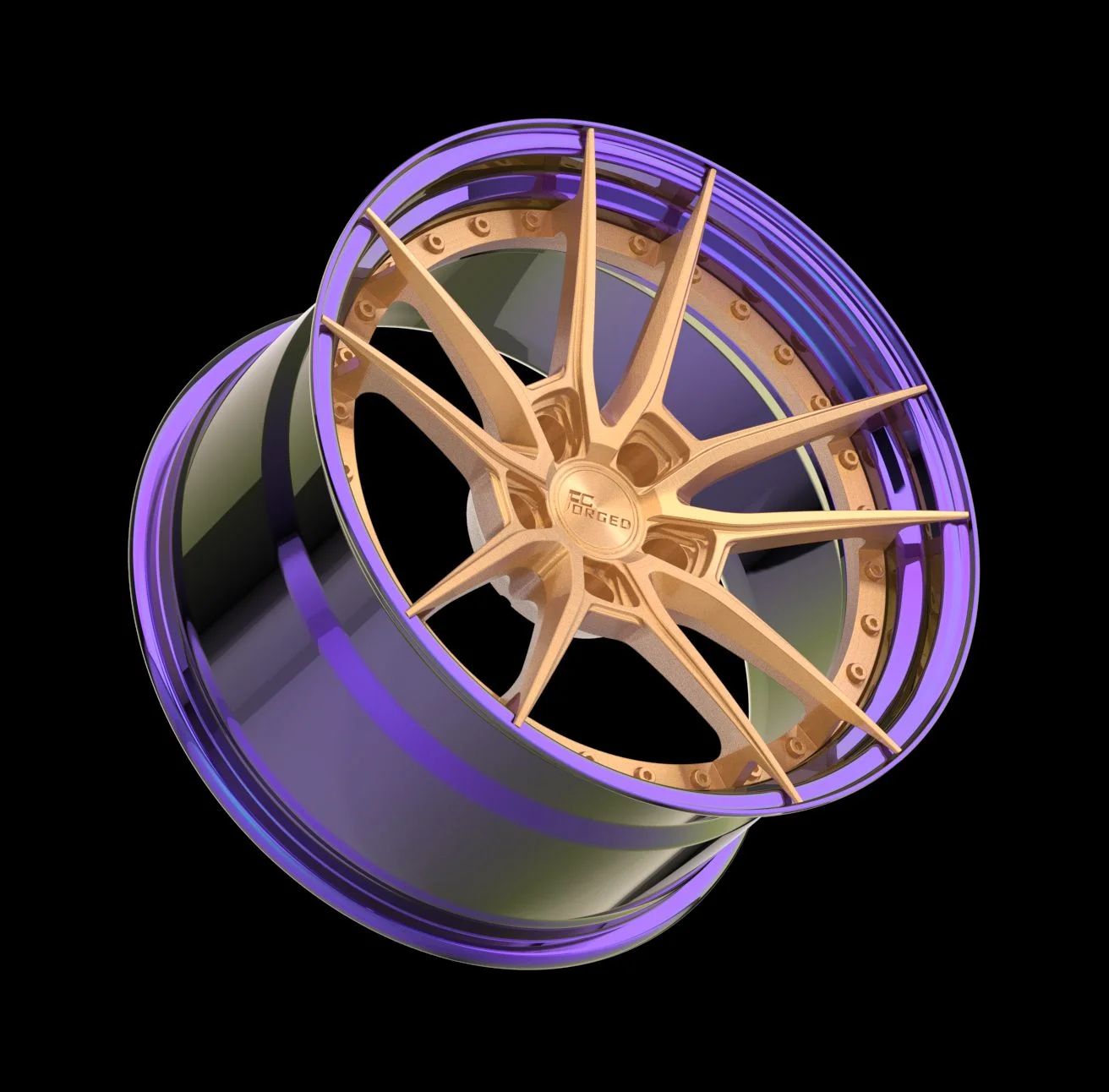

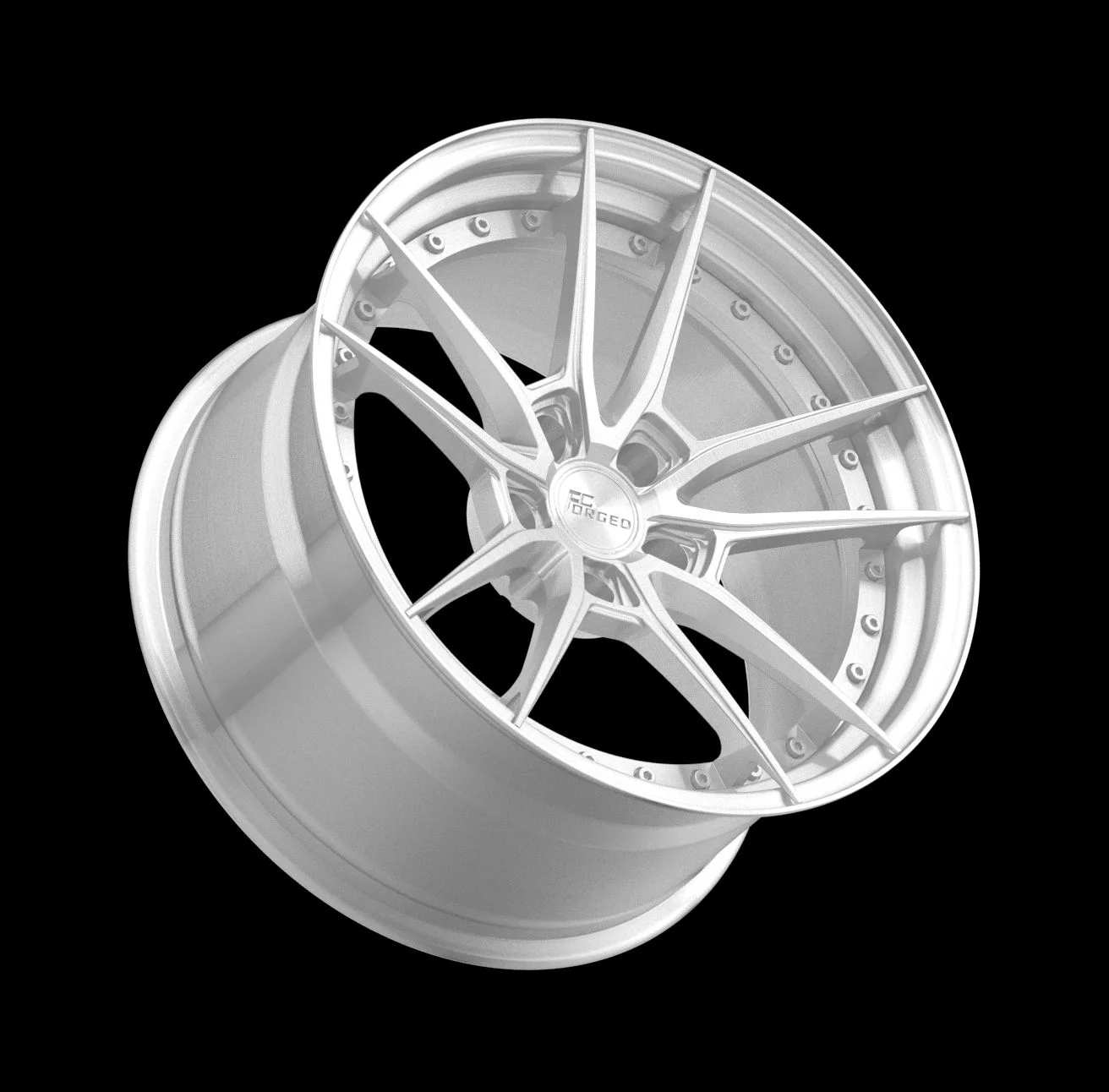

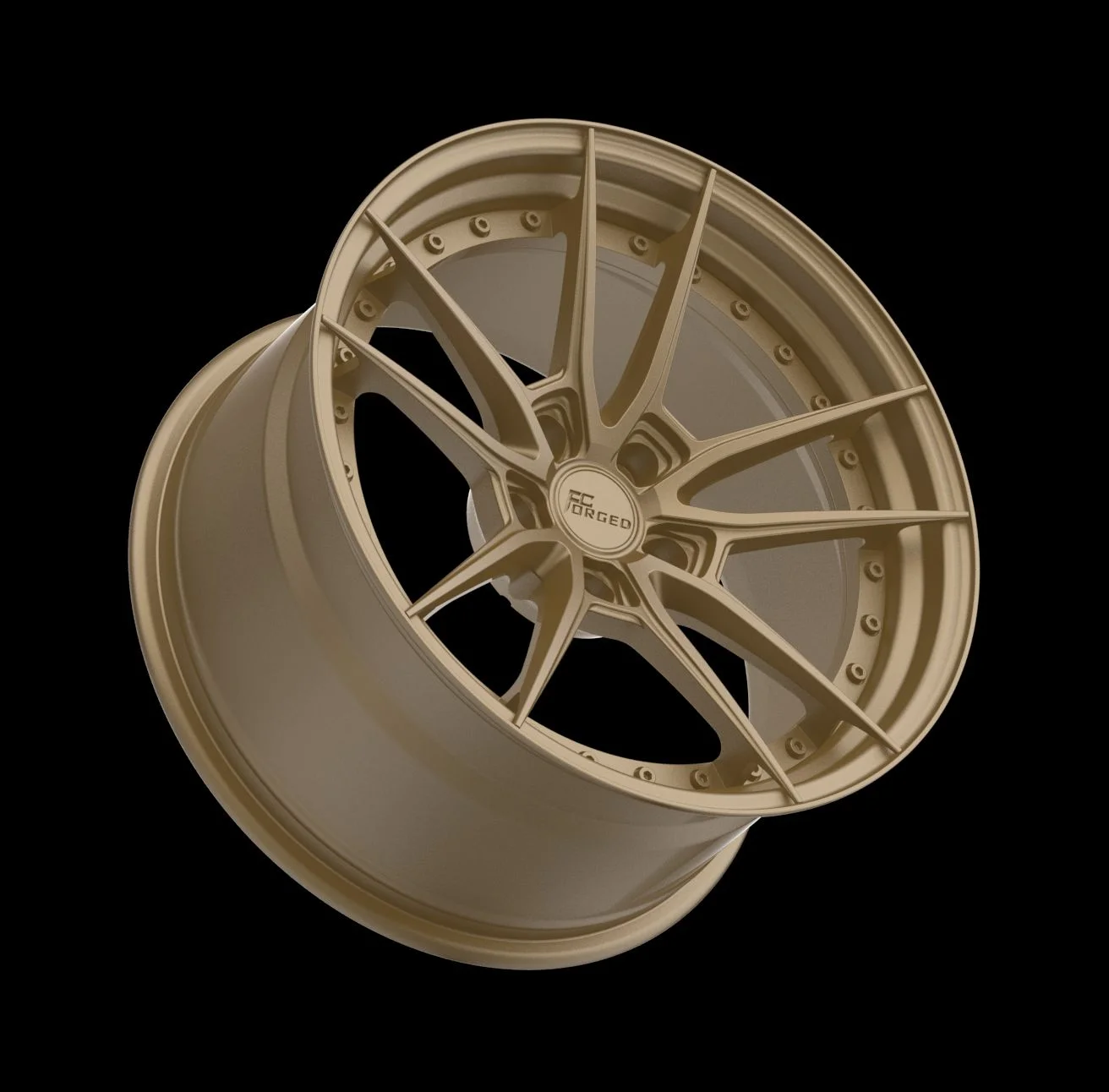

SPLIT-SPOKE FACE
Slim spokes run in pairs from the center area to the lip, giving TW022 its split-spoke appearance. Use this face as the visual reference in your brief.
02 / CONSTRUCTION
6061-T6 2-PIECE
TW022 is specified in 6061-T6 forged aluminum with 2-piece construction. Select a listed diameter and confirm the complete specification.
03 / PERSONALIZATION
FINISH & CENTER LOGO
Finish and center logo are custom. Show how you want the split spokes, center area and lip to look.
FROM YOUR BRIEF TO A REVIEWABLE DESIGN
DESIGN REVIEW & FEA

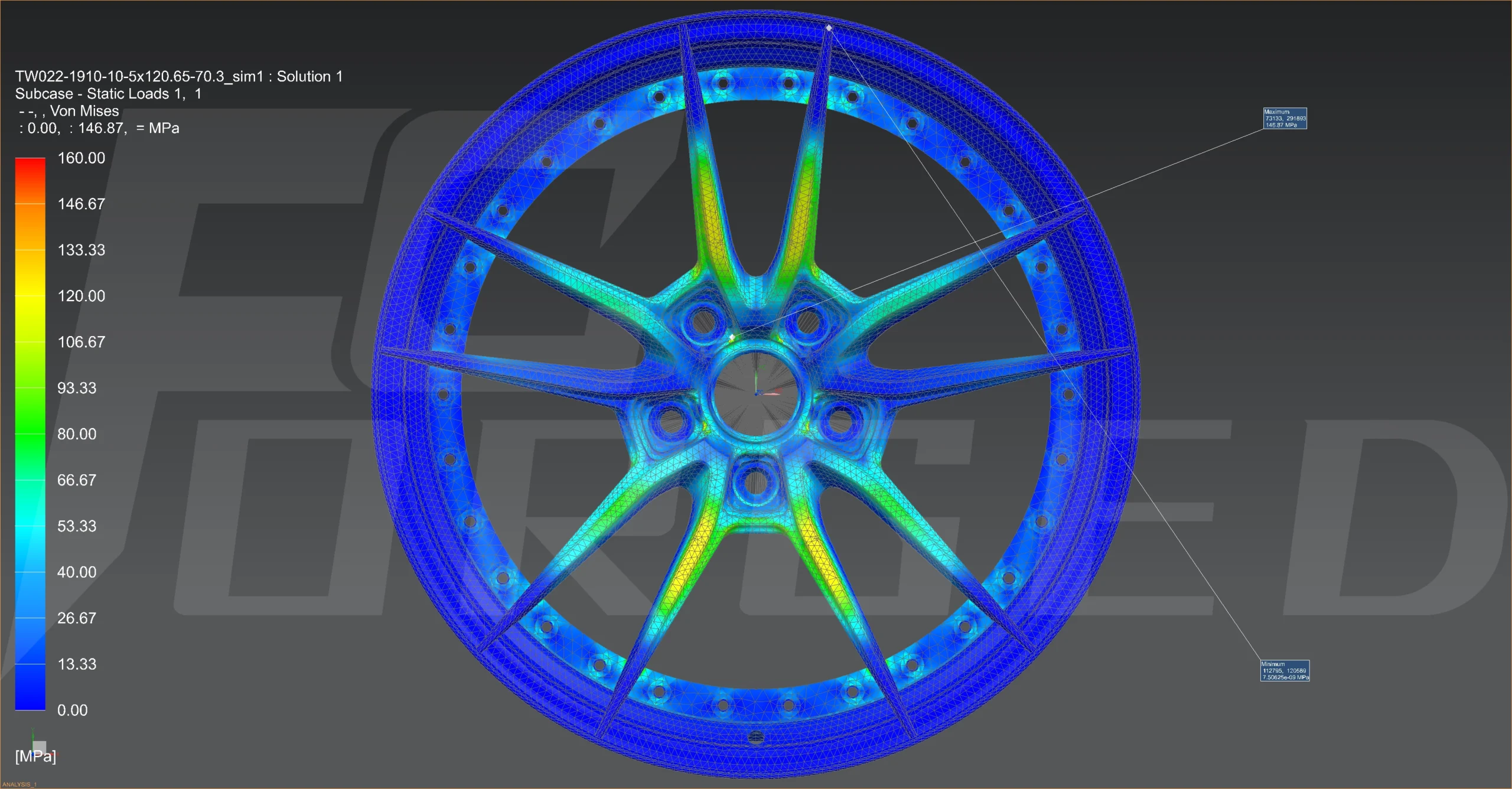

FEA analysis image for TW022. Ask for the analysis conditions and any required test evidence with your quotation.
01 / DEFINE THE PROJECT
Include your vehicle details, selected diameter, required width, exact PCD, center bore and offset. Identify front and rear differences and add a reference for the face and lip appearance.
02 / REVIEW BEFORE PRODUCTION
Review drawings for the requested dimensions, face appearance and finish before production. Confirm the written specification with your quotation.
CUSTOMIZE YOUR TW022
TW022 SPECIFICATIONS & OPTIONS
Choose a listed diameter and request confirmation of the complete specification, price and lead time for your split-spoke forged wheels.
DIAMETERS
Listed diameters: 17, 18, 19, 20, 21, 22, 23, 24, 26, 28, 30, 32 and 34 in. Provide the required width for confirmation.
FITMENT
Offset (ET) and bolt-hole count are custom. Provide the exact PCD, center bore and offset for your vehicle; hole count alone does not specify the bolt pattern.
CUSTOM DETAILS
Finish: custom. Center logo: custom. Include your requirements with the selected diameter and fitment dimensions.
CUSTOMER BUILD
A 2018 Mercedes-AMG GT R build uses TW022 wheels with an electroplated gray face and electroplated silver lip: 19 × 10 in ET46 front and 20 × 12.5 in ET38 rear, with a 5 × 112 mm PCD and 66.5 mm center bore. These dimensions describe that build only.
A CLEAR BRIEF. A BETTER START.
BUILD YOUR TW022 BRIEF
Start your brief for TW022 split-spoke forged wheels with what you know. Separate confirmed measurements from preferences.
- 01
YOUR VEHICLE
Make, model, year and trim. Note any brake or suspension modifications.
- 02
WHEEL & TIRE
Select a listed TW022 diameter and state the required width. Include your current wheel and tire specifications.
- 03
FITMENT DETAILS
Exact PCD, center bore and offset, if known. List front and rear separately.
- 04
BRAKE CLEARANCE
Brake details, measurements, drawings and photos that explain the installation.
- 05
YOUR LOOK
Show the finish you want on the split spokes, center area and lip, plus any center-logo artwork.
- 06
YOUR ORDER
Quantity, delivery destination and target schedule. Businesses can add their sales market.
Let us know whether each measurement comes from an existing wheel, a vehicle document or your own inspection.
TW022 QUESTIONS
Are TW022 split-spoke forged wheels a 2-piece design?
Yes. TW022 split-spoke forged wheels are specified with 2-piece construction in 6061-T6 forged aluminum. Confirm the complete specification with your quotation.
Which diameters are listed for TW022?
17, 18, 19, 20, 21, 22, 23, 24, 26, 28, 30, 32 and 34 in.
How does TW022 differ from TW021 and TW005?
All three are 2-piece designs. TW022 has slim spokes arranged in pairs; TW021 has a mesh-style face; for TW005 you specify the face design from your own references.
Is there a customer build with TW022?
Yes. A 2018 Mercedes-AMG GT R uses TW022 wheels in a staggered setup, 19 in at the front and 20 in at the rear. Those dimensions apply to that car only and are not a fitment recommendation for other vehicles.
What should I send to quote TW022 split-spoke forged wheels?
Send your vehicle make, model, year and trim, the required diameter and width, exact PCD, center bore and offset, and your finish and center-logo references. List front and rear dimensions separately.
