Description
FCFORGED / DESIGN & PROJECT OPTIONS

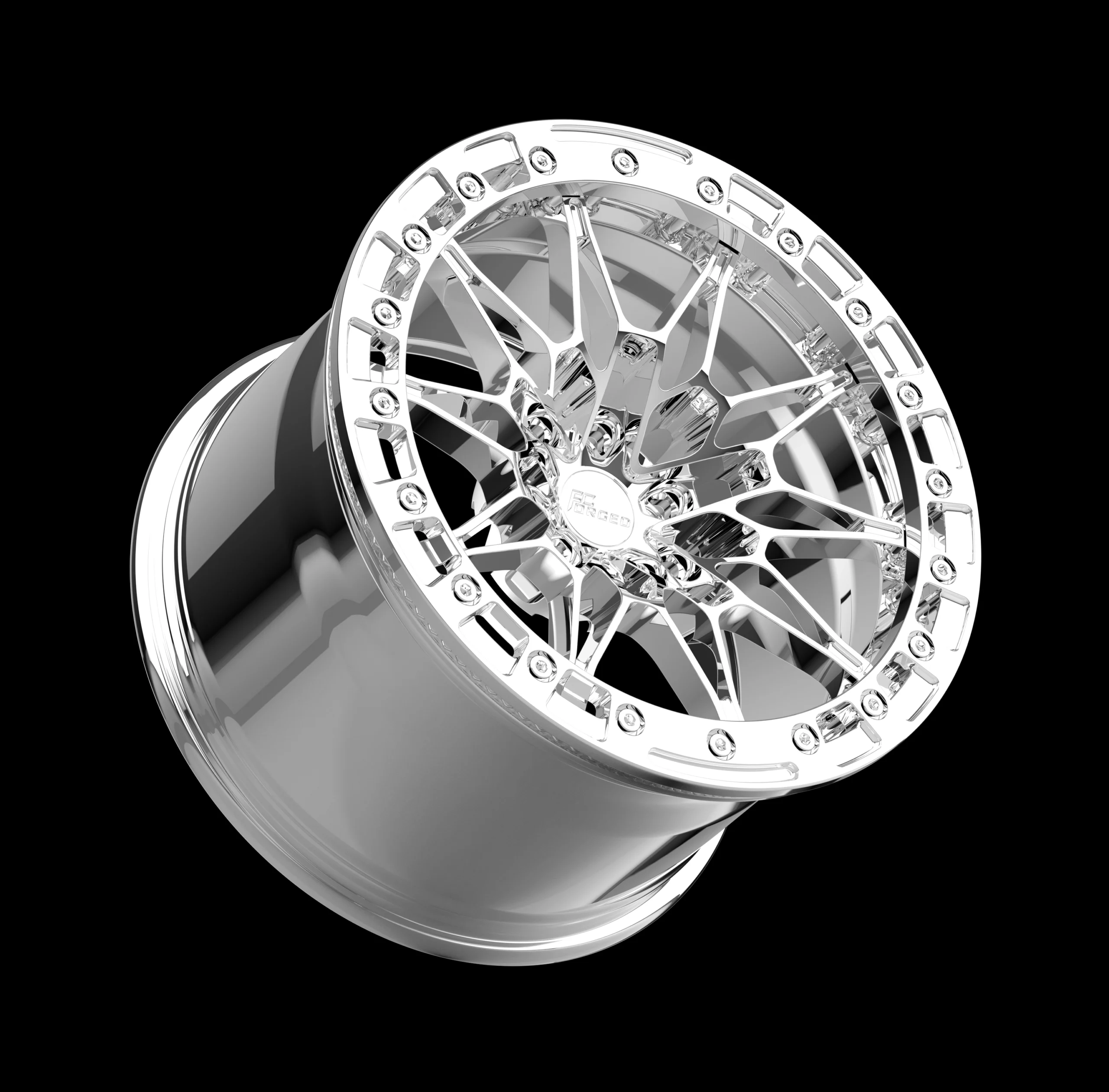

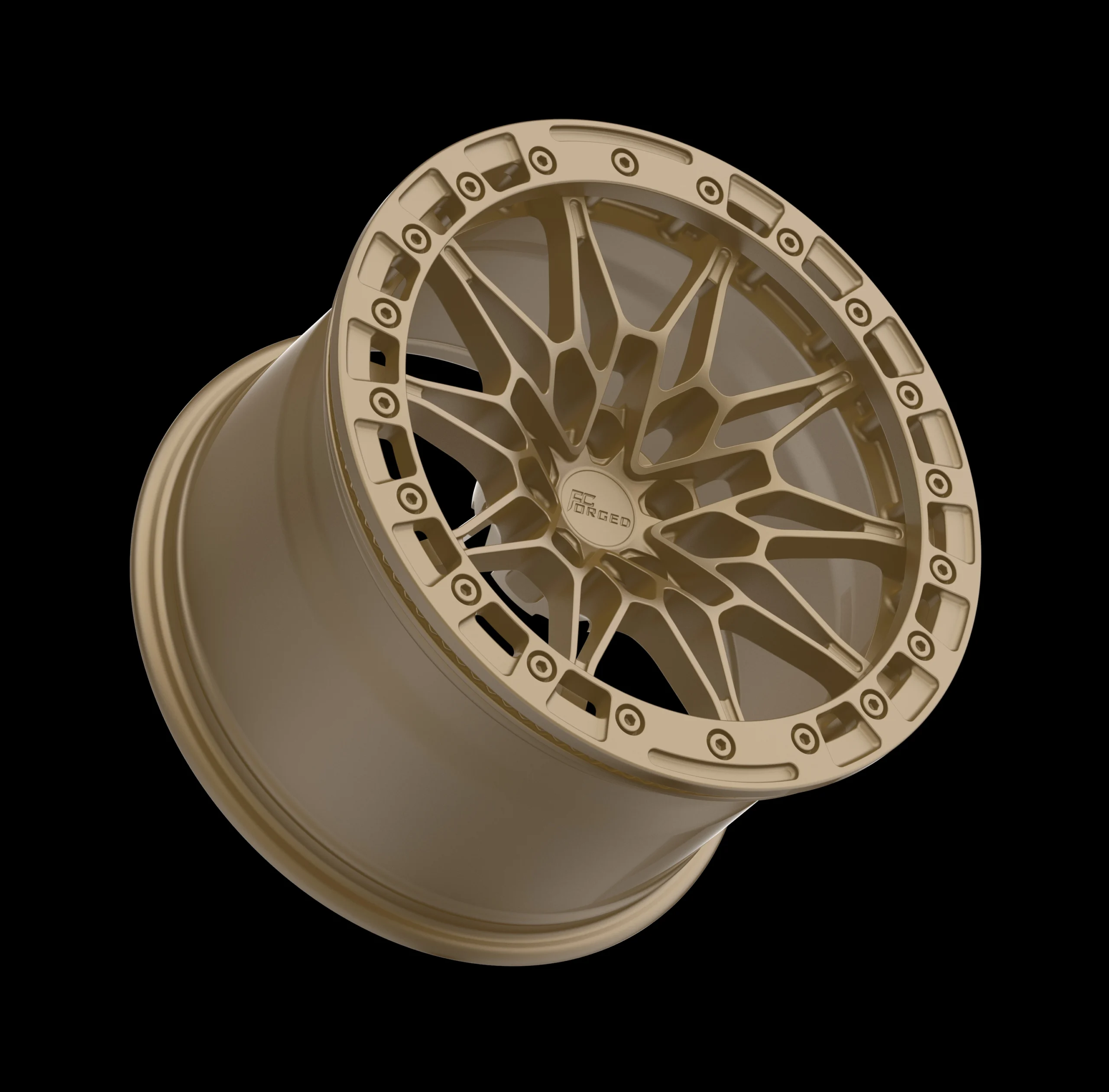

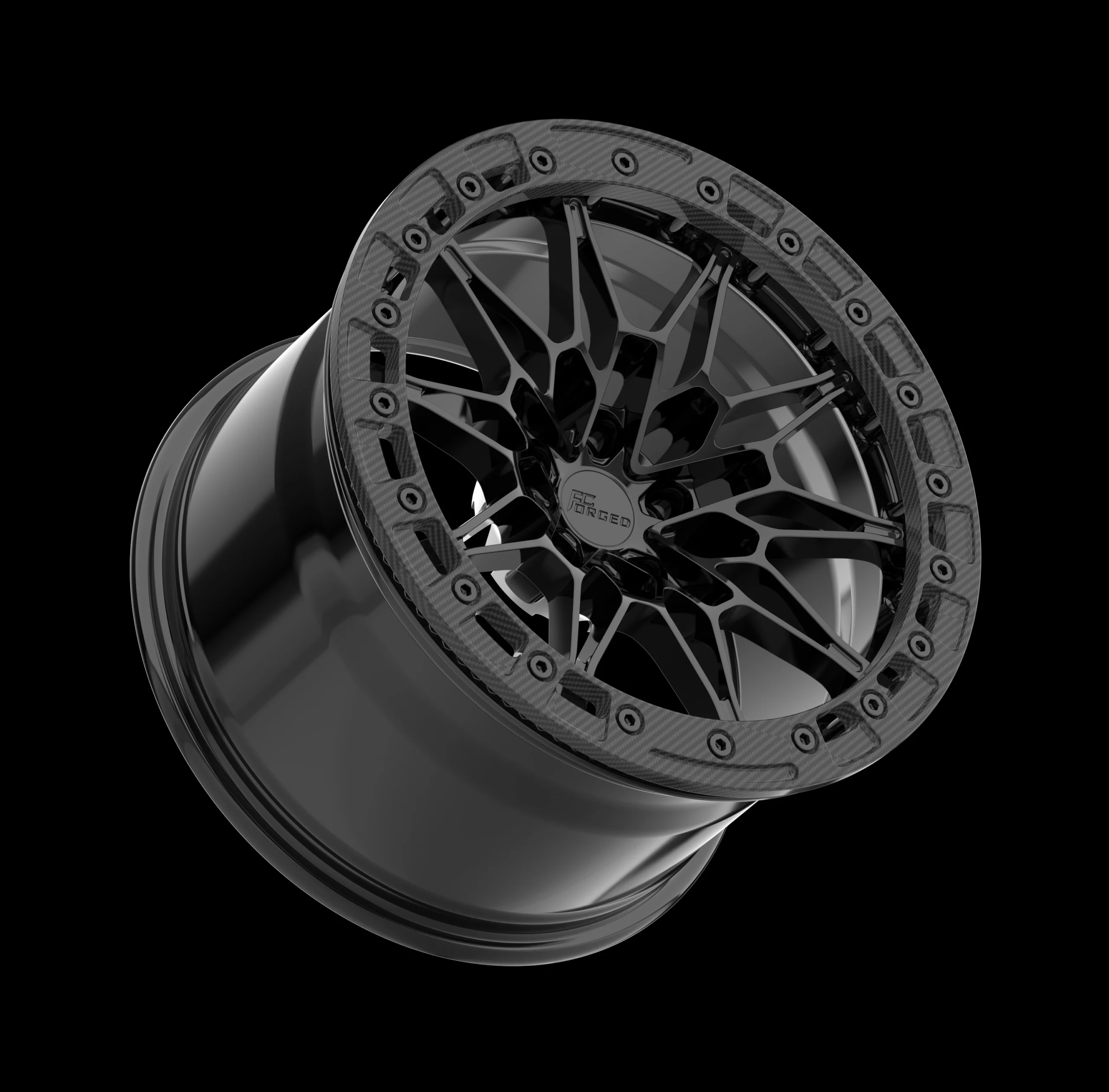

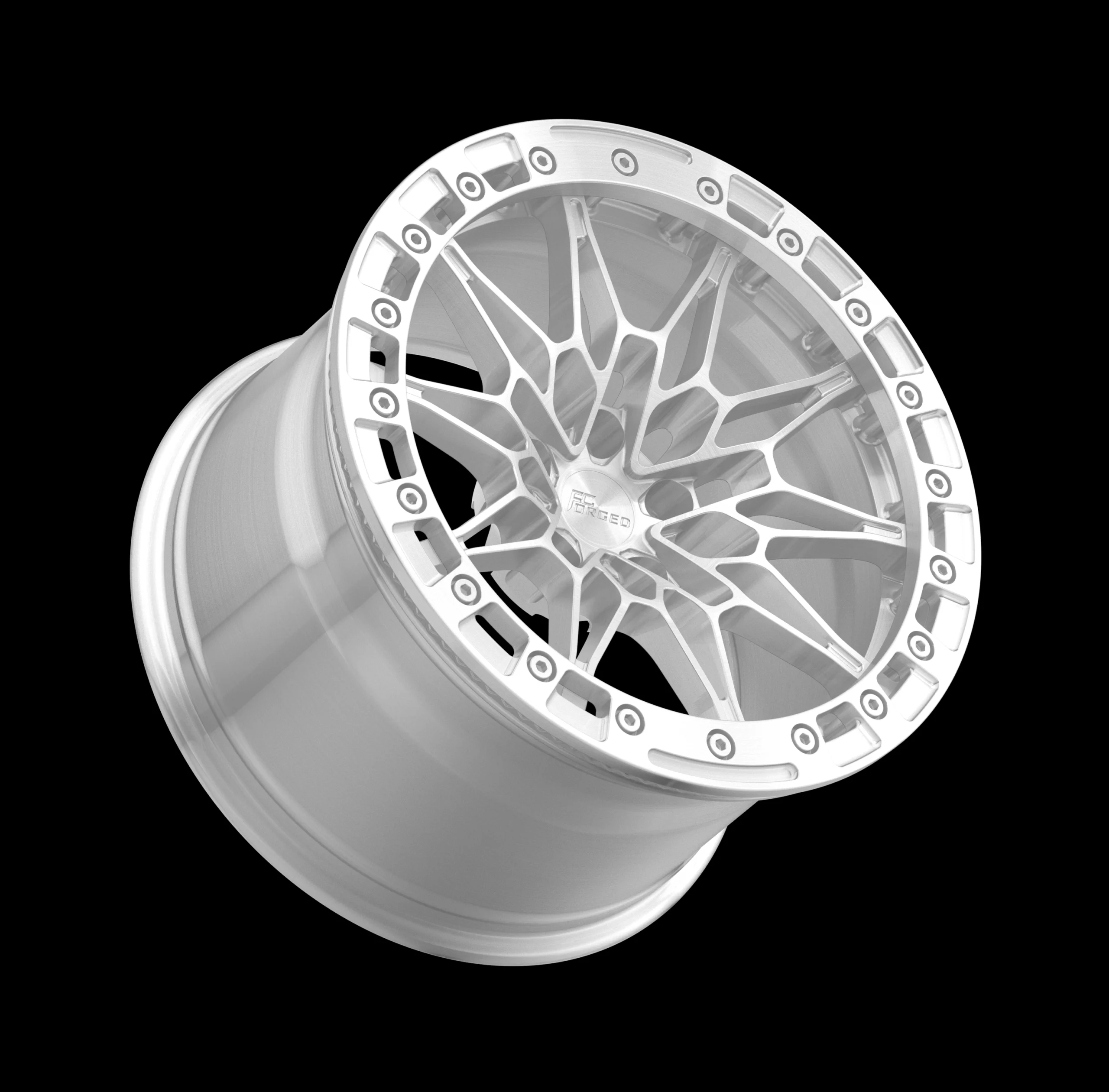

ORW004 BEADLOCK OFF-ROAD WHEELS – FORGED MONOBLOCK
ORW004 beadlock off-road wheels are made in forged 6061-T6 aluminum with monoblock construction.

01 / DESIGN
BEADLOCK OFF-ROAD DESIGN
The beadlock design defines ORW004. Include a ring appearance reference when describing the wheel you want.
02 / CONSTRUCTION
FORGED 6061-T6 MONOBLOCK
Forged 6061-T6 aluminum and monoblock construction are the material and structure specified for ORW004.
03 / PERSONALIZATION
CUSTOM FINISH & LOGO
Describe the ORW004 finish and center logo to suit the beadlock appearance in your brief.
FROM YOUR BRIEF TO A REVIEWABLE DESIGN
DESIGN REVIEW & FEA

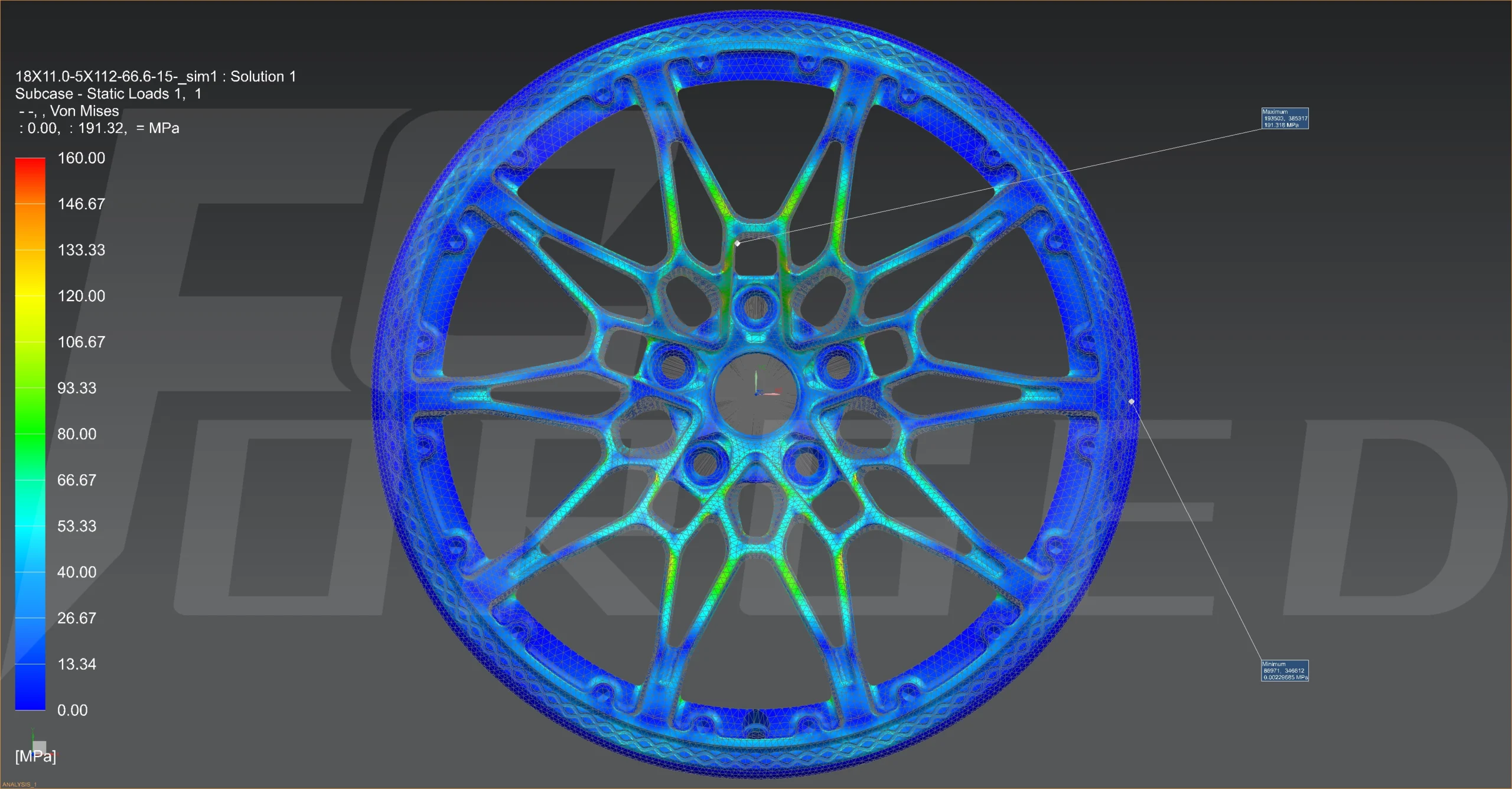

FEA analysis image for ORW004. Ask for the analysis conditions and any required test evidence with your quotation.
01 / DEFINE THE PROJECT
Share the vehicle, selected diameter, required width, exact PCD, center bore and offset. Identify front and rear differences and your intended use.
02 / REVIEW BEFORE PRODUCTION
Review the proposed specification before ordering. If analysis forms part of the review, identify the design revision, material assumptions and loading conditions. Request the corresponding evidence for any load rating or test requirement.
BOLT PATTERNS & FITMENT
ORW004 is available in 4-, 5-, 6-, 8- and 10-lug configurations and is machined to the bolt pattern, center bore and offset of your vehicle. Center bores for common bolt patterns can be machined, and offset is made to your specification. The patterns shown are common examples.
- 01Tell us your vehicle year, make, model and trim.
- 02We confirm the exact PCD, center bore and offset on your drawing.
- 03Approve the drawing before production starts.
4-LUG
COMMON EXAMPLES
4x1004x108
5-LUG
COMMON EXAMPLES
5x1005x1085x1125x114.35x1205x130
6-LUG
COMMON EXAMPLES
6x1356x139.7
8-LUG
COMMON EXAMPLES
8x165.18x1708x180
10-LUG
SEND YOUR EXACT PCD
CUSTOMIZE YOUR ORW004
ORW004 SPECIFICATIONS & OPTIONS
Confirm availability and the complete dimensions, beadlock ring and hardware details before ordering.
15–26IN
Diameter options: 15, 16, 17, 18, 19, 20, 21, 22, 23, 24 and 26 in.
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 26
CUSTOM
Offset (ET) and bolt-hole count are custom. Supply the exact PCD, center bore and offset for your vehicle; hole count alone does not define the bolt pattern.
CUSTOM
Center bore, finish and center logo: custom.
BY SIZE
Width is made to your specification. Load rating and weight vary with the wheel size.
EVIDENCE BEHIND THE WORK
Inside our production facility, from forging to final inspection.






24295
Registered manufacturer ID for motor vehicle equipment (rims).
INSPECTED
Dimensional, runout and finish checks before shipment.
A CLEAR BRIEF. A BETTER START.
BUILD YOUR ORW004 BRIEF
Build the brief for your ORW004 beadlock off-road wheels around your wheel dimensions and beadlock ring appearance.
- 01
YOUR VEHICLE
Make, model, year and trim. Note any brake or suspension modifications.
- 02
WHEEL & TIRE
Pair your ORW004 diameter, width and tire details with a reference for the beadlock ring appearance.
- 03
FITMENT DETAILS
Exact PCD, center bore and offset, if known. List front and rear separately.
- 04
BRAKE CLEARANCE
Brake details, measurements, drawings and photos that explain the installation.
- 05
YOUR LOOK
Specify the beadlock ring appearance and wheel finish you want for ORW004.
- 06
YOUR ORDER
Quantity, delivery destination and target schedule. Businesses can add their sales market.
Use separate notes for fitment measurements and ORW004 appearance preferences.
ORW004 QUESTIONS
Is ORW004 a forged beadlock wheel?
Yes. ORW004 beadlock off-road wheels use forged 6061-T6 aluminum with monoblock construction. Ring and hardware details are agreed in the quotation.
Which diameters does ORW004 cover?
ORW004 covers 15, 16, 17, 18, 19, 20, 21, 22, 23, 24 and 26 in.
Is the offset of ORW004 beadlock off-road wheels custom?
Yes. Offset (ET) is custom for ORW004 beadlock off-road wheels. Confirm the final offset with your quotation.
How does ORW004 differ from M01, M02 and HT003?
ORW004 is a beadlock off-road design: it includes a beadlock ring, with ring and hardware details agreed in the quotation. M01, M02 and HT003 are monoblock designs without a beadlock ring.
Are the ORW004 center bore, finish and logo custom?
Yes. Center bore, finish and center logo are custom for ORW004. Describe your requirements together with the beadlock ring appearance.
What should I send to quote ORW004 beadlock off-road wheels?
Send your vehicle details, required diameter and width, tire size, exact PCD, center bore and offset, and a reference for the beadlock ring appearance and finish. List front and rear dimensions separately.
How long does production take?
Production takes 15–20 calendar days for monoblock wheels after drawing approval and deposit. Chrome finishing adds 10 days. Sea freight to the United States typically takes 25–35 days after dispatch.
Can I order a single wheel?
Yes. You can order one wheel. Orders of one to three wheels carry an additional US$75 sample fee per wheel; standard custom orders are four wheels.
Do you ship to the United States, and what warranty applies?
Yes. We ship to all US states with duties and customs clearance included (DDP). Wheels carry a limited lifetime structural warranty for the original purchaser, and the finish is covered for one year. See Shipping, Payment, Warranty & Returns for the full terms.
